Product Description

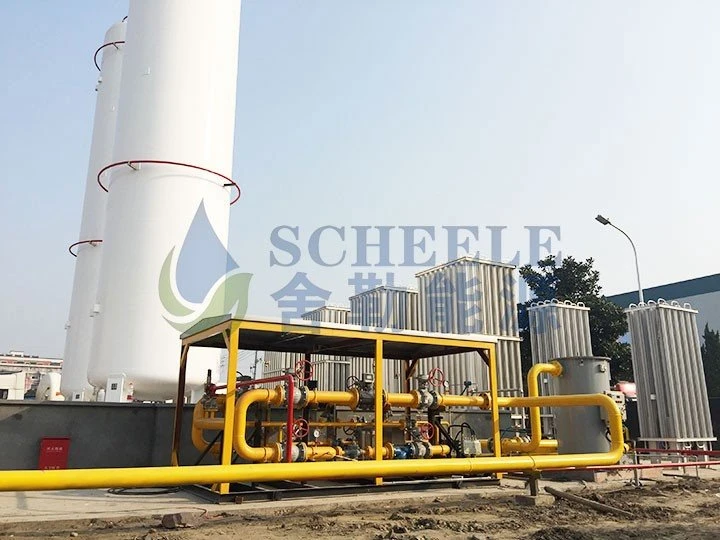

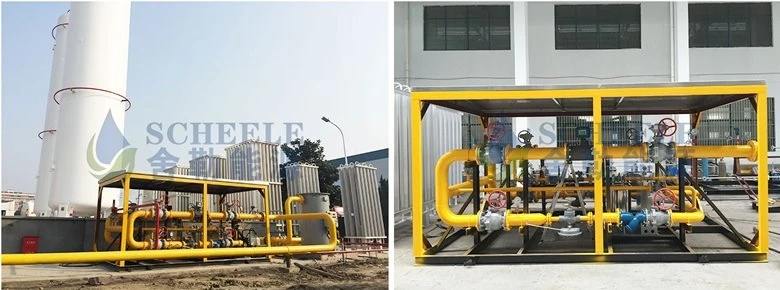

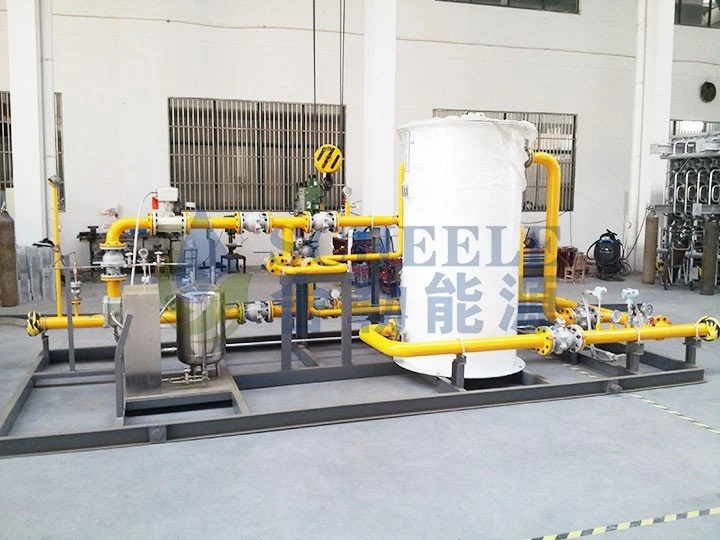

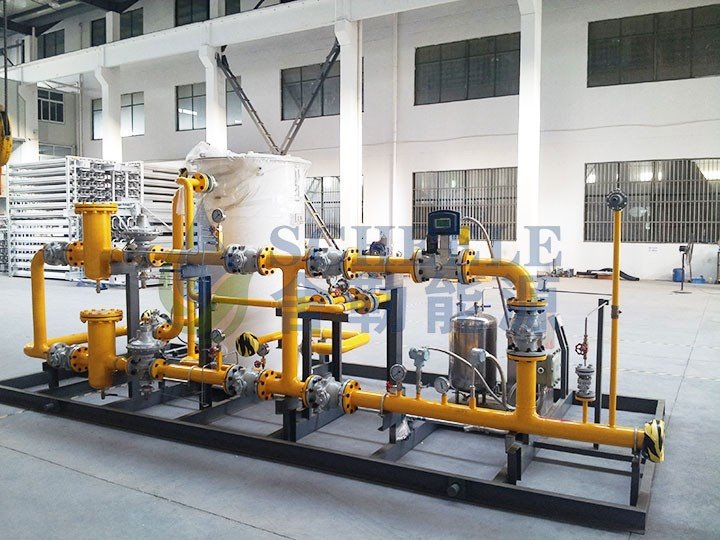

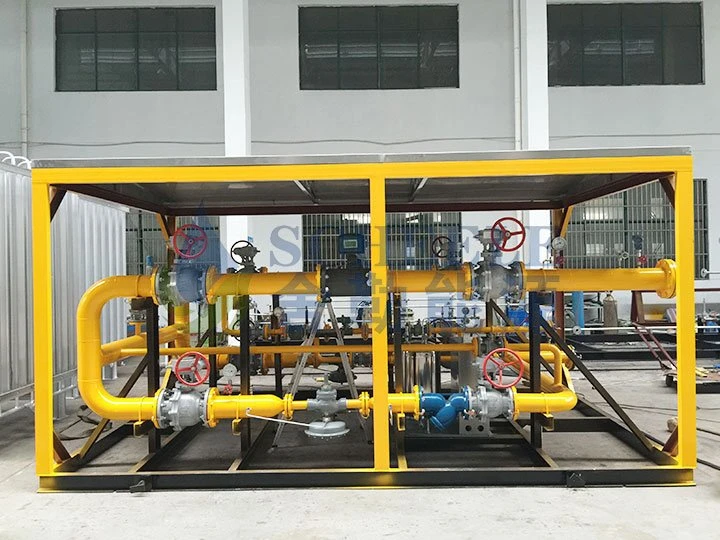

Metering and pressure regulating stations are used to control the supply air pressure at preset levels and measure the amount of gas consumed. Pressure regulating skids are available in a variety of single-flow or multi-flow configurations and are fitted with suitable filters, safety shut-off valves and metering options for clean, reliable and safe operation at end-use. These regulating skids are pre-assembled and pre-tested for easy field installation and quick start-up.
SCHEELE offers a full series of high and low pressure metering and pressure regulating stations. These are designed, manufactured and tested to global standards. This ensures that our products are of the best quality and are supplied with specifications according to the customer's system requirements.
Main Features
* Pressure regulating and metering skids set regulator, metering, filtration, safety off, safety relief in one;
* The pressure regulation and metering system is stable, safe, reliable, and easy maintenance;
* Equipment installation, commissioning, and easy, reasonable structure. suitable for indoor and outdoor installation;

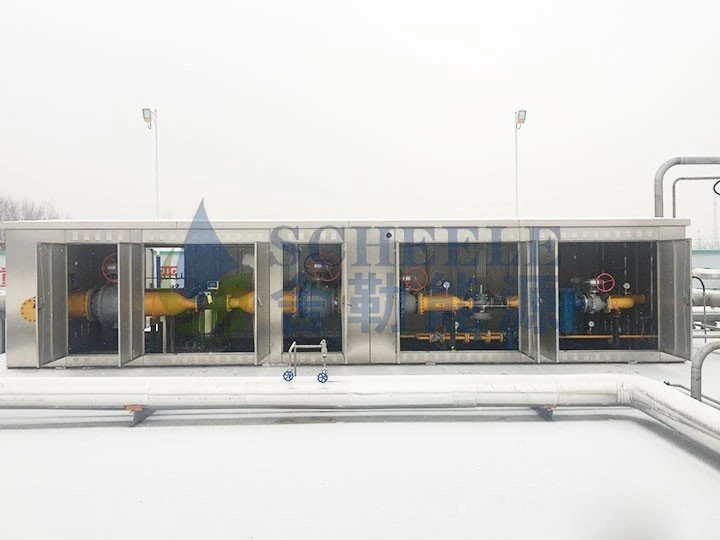

* Cabinet material: steel spray tank, stainless steel cabinet, color steel plate heat box, to meet the environmental needs of different users.
Application Industries
* Oil & gas industry
* City gas distribution industry
* Boiler, turbines, ovens & heaters industries
* Power generation industry
* Chemical and petrochemical industry
* Water and wastewater treatment industry
Media Parameters
Media | Natural gas, artificial gas, coke oven gas, liquefied petroleum gas, LPG (propane/ butane), methane gas, CBM and other gases. |
Size | DN 25 to DN 250 |
Inlet Pressure | 1 to 20 Bar |
Outlet Pressure | 0.5 bar to 15 Bar |
Temperatures | -20°C to 100°C |
Filtering Range | 10μ to 200μ |
Regulators | Self actuated / pilot operated (with or without over pressure shut-off) |
Flow Meter Type | Turbine, Ultrasonic, Orifice, Vortex, Corolis |
Shut-Off Valves | Electrically or pneumatically operated |
Electric voltage for solenoid valves | 110VAC, 230VAC, 24VAC |
Design Standards | Confirming to BS / IS / EN / NFPA / IRI / FM as per customer requirement. |
Note: Other fuel options, sizes, inlet & outlet pressure range and flow meter type can be deigned and offered on request.
