What is Pressure Reducing Skid

Pressure reducing skid is a pressure reducing equipment commonly used in the industrial field, its main role is to reduce the pressure in the high pressure pipeline to the appropriate pressure range required to ensure the normal operation of the pipeline and equipment. In many industrial fields, pressure reducing skid is an indispensable part, such as petrochemical, gas transportation, machining and so on.

Advantages of Pressure Reducing Skid

Reduce the amount of on-site construction and shorten the construction period. Traditional on-site equipment and fixed equipment required after equipment procurement, on-site equipment and commissioning, construction cycle is long, but also requires planning, construction, suppliers of the contact harmony, high operating capacity, requires the construction party has extensive construction experience, understanding of manufacturers and supporting equipment equipment requirements, the user needs to be equipped with professional and technical personnel to cooperate. Pressure reducing skid with integrated supply, assembly, testing, inspection are completed in the factory, greatly reducing the site construction workload, only need to connect in and out of the pipeline and electrical equipment wiring, equipment debugging is convenient, the construction cycle than the traditional on-site equipment to shorten the time required by half or even more.

Improve the engineering manufacturing efficiency and ensure the quality of engineering manufacturing. On-site equipment and fixed equipment require good professionalism and construction experience of on-site construction personnel. As far as this project is concerned, it is difficult for the local construction team to ensure that the welding of station equipment meets the quality requirements. Skid-mounted equipment is supplied as a whole, the quality is easy to be guaranteed, avoiding the rework caused by unqualified welding on site and improving the construction quality and efficiency.

Saving engineering resources and reducing engineering investment. Skid-mounted equipment can make full use of the three-dimensional space, so that the equipment is compactly placed, saving the amount of information used, and its footprint is only 40% to 60% of the footprint of the fixed equipment on site, which can save land resources. Integrated supply reduces the need for on-site construction technicians, reduces on-site construction costs, saves the operator to the site equipment, equipment for various travel costs, as well as the completion of the operation equipment, the remaining material round-trip transportation costs. At the same time, due to the comprehensive testing before leaving the factory, reducing the workload of on-site commissioning, reducing commissioning costs.

Convenient operation and maintenance, on-site equipment is fixed, due to the suppliers are usually different, equipment problems, spare parts procurement needs to be provided by the supplier to provide adequate technical support, follow-up operation and maintenance costs and management is relatively difficult. Product problems can be resolved by the supplier in a timely manner, improving the stability and reliability of equipment operation, but also facilitates the maintenance and management of equipment.

High reuse value. The pressure reducing skid is highly movable and has a high reuse value. The skid module can be relocated and used many times and in many places as a whole, and the equipment reuse rate is as high as 90%.

Usage of Pressure Reducing Skid

A Pressure Reducing Skid (PRS) is a device used in a variety of industries to reduce the pressure of gases or liquids in a pipeline.The purpose of a PRS is to regulate the flow of fluids and gases at a specific pressure level to ensure that they meet required standards.

In the oil and gas industry, PRS systems are used to reduce the pressure of natural gas or crude oil during transportation. This is important because these fluids are often transported at very high pressures, which can lead to explosions or other dangerous accidents. With PRS systems, the pressure is controlled and reduced to safe transportation levels.

In manufacturing, PRS systems are used to regulate the pressure of steam or other fluids used in various processes, such as heating or cooling. By controlling pressure, these systems ensure that manufacturing processes run smoothly and efficiently.The purpose of PRS is to improve the safety, efficiency, and reliability of a variety of industries that rely on the transportation and regulation of fluids and gases.PRS systems play an important role in ensuring the smooth operation of pipelines, manufacturing processes, and other industrial applications.

Problems Encountered in Pressure Reducing Skid Pressure Reduction

The pressure reduction system is separate from the temperature reduction system. The temperature reduction skid is mainly used in poor working conditions such as low steam flow and is not suitable for temperature reduction valves. In saturated steam conditions (low pressure is mainly considered low steam flow), the use of venturi cooling method, cooling water fully atomized, cooling effect is better.

Nowadays, the vacuum device industry wants to continue to develop, fundamentally adjust the industrial structure, after all, the life cycle of the vacuum device is not as long as the life of the device, so many manufacturers have carried out a proper update of their devices, with the promotion of science and technology, the vacuum device has now been presented with the momentum of the integration of machine, electricity, gas, life, to be able to work efficiently and save energy.

In the pressure pipeline, usually high-pressure gas enters the pipeline through the shut-off valve, and is depressurized through the regulating valve of the pressure reducing skid, so that it reaches the required pressure, and then transported to various places.

In general pressure regulator, after the high pressure gas is depressurized through the pipeline, the gas is directly output through the pipeline without buffer because the diameter of the inlet pipe and the delivery pipe at both ends of the regulator are the same, which will cause the gas pressure to be unstable.

Usually, some manufacturing companies will set up a spherical buffer space in the gas pipeline, so that the decompressed gas along the pipeline into the spherical buffer space for buffering, so that the output gas pressure tends to stabilize.

The spherical buffer space is difficult to process and needs to be welded on the gas pipeline, which increases the workload, and when the welding quality is not good, it is easy to have gas leakage.

Precautions for Selecting Pressure Reducing Skid

According to different working conditions and use conditions, it is very important to choose the right pressure reducing skid. When choosing a pressure reducing skid, you need to consider the material of the pipeline, pressure, flow rate, medium and other factors. The following points should also be noted:
Select the appropriate pressure reducing skid, the pressure should not exceed its rated pressure range;
Consider the nature of the fluid, such as whether it is corrosive, hazardous substances, the impact of the valve material;
To consider the medium temperature, temperature fluctuation range and other factors;
To be considered according to the pipeline structure, installation methods, space environment and other factors.

Working Principle and Classification of Pressure Reducing Skid

Pressure reducing skid, also called pressure reducing valve or pressure reducer, is a device that controls fluid pressure by adjusting the valve aperture or changing the inner diameter of the pipeline. When the pressure in the pipeline exceeds the set value, the pressure reducing skid will be automatically activated to automatically release the excessive pressure, so as to protect the system equipment from damage due to overpressure. Pressure reducing skid usually consists of piston, seat, valve, adjusting spring, adjusting screw, etc., according to its structure and working principle can be divided into many kinds:

Direct-acting pressure reducing skid
Direct-acting pressure-reducing skid is a relatively simple pressure-reducing valve, composed of valve body, valve seat and spring. When the pressure of the liquid or gas in the pipeline exceeds the set value, the spring will be compressed, the valve opens, and the overpressurized liquid or gas is discharged from the valve, thus protecting the normal operation of the system.

Indirect acting pressure reducing skid
Indirect-acting pressure reducing skid is mainly composed of main valve, control valve and actuator. It is characterized by dynamic adjustment of pressure fluctuation before and after the main valve through the control valve and actuator, so as to achieve the effect of pressure reduction. Indirect acting pressure reducing skid is widely used in petroleum, chemical, metallurgy, electric power, light industry and other fields.

Pressure Reducing Skid Precautions

When using the pressure reducing skid, there are several important precautions to be observed to ensure the safe and effective operation of the pressure reducing skid:

1. Pre-operation checks
• Ensure that the regulator, shut-off valve, overpressure relief valve, pneumatic valve, instrument air and other equipment is normal.
• Check that the heating system is normal.
• Connect the high-pressure hose of the unloading pipe with the quick-fitting connector on the CNG tanker.
• Close the pressure reducing skid pressure gauge, open the pressure reducing skid temperature transmitter, pressure transmitter control valve.
• Open the control cabinet of the pressure reducing skid, and the button of the emergency shut-off valve is in the automatic state. Calibrate the display parameters with the on-site display parameters of the pressure regulator.
• Turn on the electric heating, adjust the water temperature to the rated temperature.
• Turn on the air compressor, open the third-party gas supply valve, pneumatic emergency shut-off valve should be in the open state.

2. Operation precautions
• In normal gas supply, the valve should be opened and closed slowly, and fast opening and closing is strictly prohibited.
• When stopping the gas supply and closing the pressure reducing skid, the valve of the unloading port of the tanker should be closed first, and then close the valve of the inlet pipeline of the unloading pipe, and then close the valve of the pressure reducing skid in turn, and finally close the heat exchanger. In all operations, the opening and closing of the valve needs to be carried out slowly, it is strictly prohibited to open and close the operation quickly.

3. Equipment selection and maintenance
• Before purchasing natural gas pressure reducing skid, you need to understand the actual peak natural gas consumption and gas pressure. According to the actual demand to choose the appropriate pressure reducing skid models and specifications, to avoid the selection of too large or too small to cause problems.
• The pressure reducing skid must be regularly calibrated and the pressure gauge must be regularly inspected to ensure the reliability of pressure regulation and the accuracy of the pressure gauge reading.
• If the pressure reducing crowbar is found to be frozen during use, it should be thawed with hot water or steam, and should never be baked with flame or red iron.
• The pressure reducing crowbar must be kept clean and must not be contaminated with grease or dirt.

How to Operate the Decompression Sled

Every time before use, should check the central console of the instrument and indicator status, hot water and compressed air parameters and equipment operating conditions, the site process and valve position. After the above checks are normal, open the unloading valve, the total inlet valve, press the field start button, the pressure regulator into normal use.

When normal shutdown, close the unloading valve, the total inlet valve, press the shutdown button. According to the process requirements to close the relevant valves, auxiliary equipment, if necessary, should consider the hot water system emptying and electrical system power failure. The regulator is in shutdown standby mode.

When the CNG unit is in an abnormal situation, the self-protection system will automatically close the emergency shut-off valve and alarm in the central control room with sound and light signals. After human intervention or automatic elimination of the abnormal condition, it can be restarted according to the normal startup procedure. At any time, as long as the pressure at all levels of ultra-high, heat transfer return water temperature is too low and any other abnormal conditions exist, the regulator is forced to shut down until the cause of the abnormality is found and eliminated, then it may be reused.

Emergency stop buttons are provided in the central control room and on site in case of any perceived emergency stop.

Although the CNG unit is equipped with a function to prevent the impact of medium gas flow, care should be taken not to open and close the manual valves too quickly during use.

Periodic inspections should be made and recorded to ensure stable operation. Inspection should observe the indoor instrumentation, indicators, outdoor instrumentation, indicators, operating noise, dynamic and static sealing points.

Open and close the valves regularly, check the opening and closing flexibility, and add lubricating grease.

Regularly check and test the instrument control system and self-protection interlocking system. And should be measured in accordance with the relevant provisions of the measurement, display instrumentation for regular calibration.

Regular sub-channel overhaul. After overhaul should be in accordance with the requirements of the relevant norms for construction and acceptance before being put into use.

Our Factory

Wuxi Scheele Energy Technology Co., Ltd. is located in Wuxi in the beautiful Taihu Lake, Wuxi cities in the economically developed Yangtze River Delta.
Wuxi Scheele Energy Technology Co., Ltd. is a gas and industrial gas equipment research, development, manufacturing, and engineering solution that provides comprehensive science and technology enterprises. Our Company has established and perfected quality records control, process quality control, product improvement, customer service response, and system improvements, including the management system, and has highly qualified technical engineers and production technicians, excellent team, so that the core competitiveness of enterprises constantly enhanced.
Wuxi Scheele Energy Technology Co., Ltd. adhering to the "Strict Integrity, Technical Expertise, Quality Assurance, Quality Assurance, Efficient Service" business philosophy, to provide our customers with advanced products and quality service.
Wuxi Scheele Energy Technology Co., Ltd. has been working closely with many gas companies.

Certificate

FAQ

Q: What is a pressure reducing skid?

A: A pressure reducing skid is a modular device that integrates components such as pressure regulating valves, safety valves, filters, instruments and pipelines. It is used to reduce the pressure of high-pressure gas or liquid to the required low pressure level and is widely used in the oil, natural gas, chemical, pharmaceutical and other industries.

Q: What is the main function of a pressure reducing skid?

A: The main function is to safely and stably reduce the pressure of high-pressure fluid to the low pressure range required by the system or equipment, protect downstream equipment and pipelines from high pressure shocks, and ensure the stability of fluid flow and pressure.

Q: What are the main components of a pressure reducing skid?

A: It is mainly composed of pressure regulating valves, safety valves, filters, pressure gauges, flow meters, pipelines and connectors, control systems and other components.

Q: How to choose a suitable pressure reducing skid?

A: When choosing, factors such as fluid medium, inlet pressure, outlet pressure, flow requirements, working environment temperature, pressure fluctuation range, safety requirements, etc. should be considered, and the technical specifications and selection guide provided by the supplier should be referred to.

Q: What are the requirements for the installation location of the pressure reducing skid?

A: It should be installed in a location that is convenient for maintenance, operation and safety, away from fire, heat and vibration sources, ensure good ventilation, and avoid direct sunlight and rain.

Q: What is the maintenance cycle of the pressure reducing skid?

A: The maintenance cycle varies depending on the use conditions and fluid media. It is generally recommended to regularly check components such as filters, pressure gauges and flow meters, and clean or replace them as needed. The specific cycle needs to refer to the supplier's recommendations.

Q: What is the function of the safety valve of the pressure reducing skid?

A: The safety valve is an important safety device of the pressure reducing skid. It is used to automatically open when the system is overpressured to release excess pressure and prevent equipment damage and accidents.

Q: How does the control system of the pressure reducing skid work?

A: The control system monitors the fluid pressure and flow through sensors, controls the opening of the pressure regulating valve according to preset parameters, and realizes automatic pressure regulation and stable output.

Q: Does the filter of the pressure reducing skid need to be replaced regularly?

A: Yes, the filter will gradually become clogged as the use time increases, affecting the fluid flow and pressure reduction effect. Therefore, it is necessary to regularly check and replace the filter to maintain the normal operation of the system.

Q: How to adjust the pressure regulating valve of the pressure reducing skid?

A: The pressure regulating valve is usually adjusted by rotating the adjustment hand wheel or adjusting the control signal. The specific adjustment method needs to refer to the operating manual provided by the supplier.

Q: What should I do if the outlet pressure of the pressure reducing skid is unstable?

A: The unstable outlet pressure may be caused by pressure regulating valve failure, filter blockage or fluid medium change. These fault factors should be checked and eliminated first, and then the pressure regulating valve should be readjusted.

Q: How to solve the noise problem of the pressure reducing skid?

A: The noise problem may be caused by fluid impact, vibration or improper design of the equipment itself. You can try to adjust the opening of the pressure regulating valve, add shock absorbing devices or replace low-noise equipment to reduce noise.

Q: What are the applications of pressure reducing skids in natural gas transportation?

A: In natural gas transportation, pressure reducing skids are used to reduce high-pressure natural gas to a pressure range suitable for urban gas pipelines or industrial gas to ensure safe and stable supply of natural gas.

Q: How to prevent freezing of pressure reducing skids?

A: When used in cold areas, insulation measures should be taken to prevent fluid freezing. At the same time, components such as pressure regulating valves and filters with antifreeze functions can be selected.

Q: What are the requirements for the material selection of the pressure reducing skid?

A: The material selection needs to be determined according to factors such as the properties of the fluid medium, the working pressure and the temperature. Generally, the material is required to be corrosion-resistant, high-pressure-resistant, high-temperature-resistant and have good sealing performance.

Q: How to trigger the emergency stop function of the pressure reducing skid?

A: The emergency stop function is usually achieved by pressing the emergency stop button or cutting off the power supply. In an emergency, this function should be triggered quickly to cut off the fluid supply and protect the safety of equipment and personnel.

Q: What are the fault diagnosis methods for the pressure reducing skid?

A: Fault diagnosis methods include observation, listening, measurement (such as using pressure gauges, flow meters, etc.) and comparison (comparison with normally operating equipment). If necessary, professional instruments can be used for fault detection and analysis.

Q: How to achieve remote monitoring of the pressure reducing skid?

A: Remote monitoring can be achieved by installing equipment such as sensors, data collectors and communication modules. The collected data is transmitted to the remote monitoring center through a wireless network or a wired network for analysis and processing.

Q: How does the pressure reducing skid save energy?

A: The pressure reducing skid reduces unnecessary energy consumption and waste by precisely controlling fluid pressure and flow. At the same time, the use of energy-efficient components and control systems also helps to improve energy saving.

Q: What is the life expectancy of a pressure reducing valve?

A: How long will a Water Pressure Reducing Valve last? The life expectancy of a water pressure regulator is most commonly in the range of 10 to 15 years. However, you may see a regulator malfunction at three years and one still properly functioning at 20 years old if regularly maintained.

We're professional pressure reducing skid manufacturers and suppliers in China, specialized in providing high quality custom products. We warmly welcome you to buy the best pressure reducing skid for sale here from our factory. For price consultation, contact us.

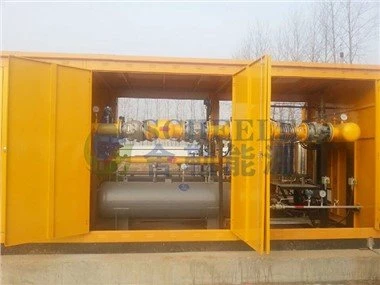

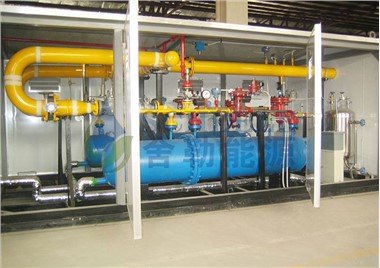

CNG Pressure Reducing Skid Natural Gas, Pressure Reducing Skid, Natural Gas Pressure Reduction Station
