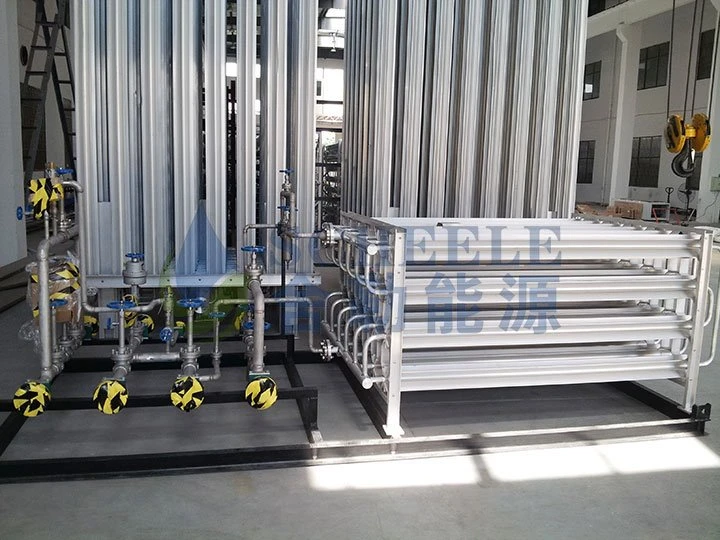

Storage Tank PBU Skid

Product Description

LNG storage tank PBU skid: Use the unloading pressurized gasifier installed in the station to pressurize the tank container vehicle, so that a certain pressure difference is formed between the tanker and the cryogenic liquid (LNG) storage tank, and this pressure difference is used. The cryogenic liquid (LNG) in the tanker is unloaded into the storage tank of the gasification station. At the end of unloading, the gas-phase natural gas in the tanker is recovered through the gas-phase pipeline of the unloading platform. LNG unloading supercharger, skid-mounted equipment has compact structure, small footprint and convenient installation.

Main Features

* No energy consumption, no pollution, and low operating costs in the later stage;

* Simple installation and convenient maintenance;

* A safety valve will be set between all the two valves to prevent misoperation, the front and rear two valves are closed, and there is LNG residual liquid left in the pipeline, which may cause danger of high pressure caused by gasification;

* The advanced high-pressure tube compound technology makes 100% contact between the pressure tube and the heat exchange tube to ensure the heat exchange effect;

* All parts of the equipment are cleaned and manufactured according to the oxygen service standard, which is safer to use;

* Gasification capacity: 150-1000 Nm3/h (can be customized)

* Safety valve take-off pressure: 0.7Mpa (0.5-0.9MPa adjustable);

* Working pressure: 0.3-1.6 Mpa;

* Thicker pipe design, stronger pressure resistance and wind resistance;

* Ample flow design to meet the effective gasification of domestic and imported LNG;

* Complete security protection functions to ensure safe and reliable use of the device.
